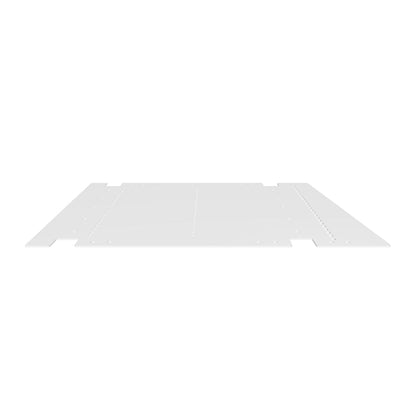

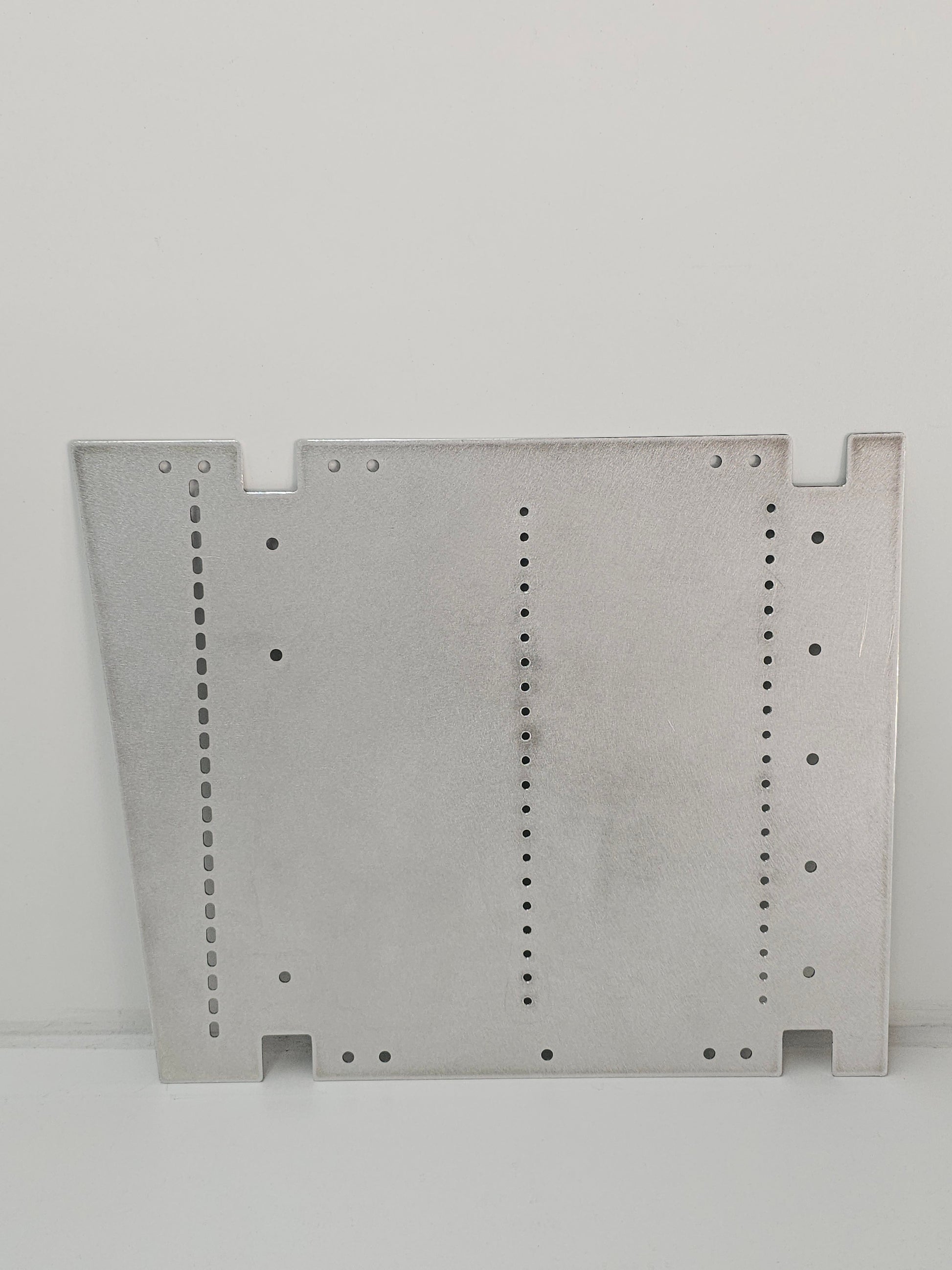

Constructed out of 1.6mm 5052 aluminum, this part is light weight and easy to modify if you need an extra hole or two

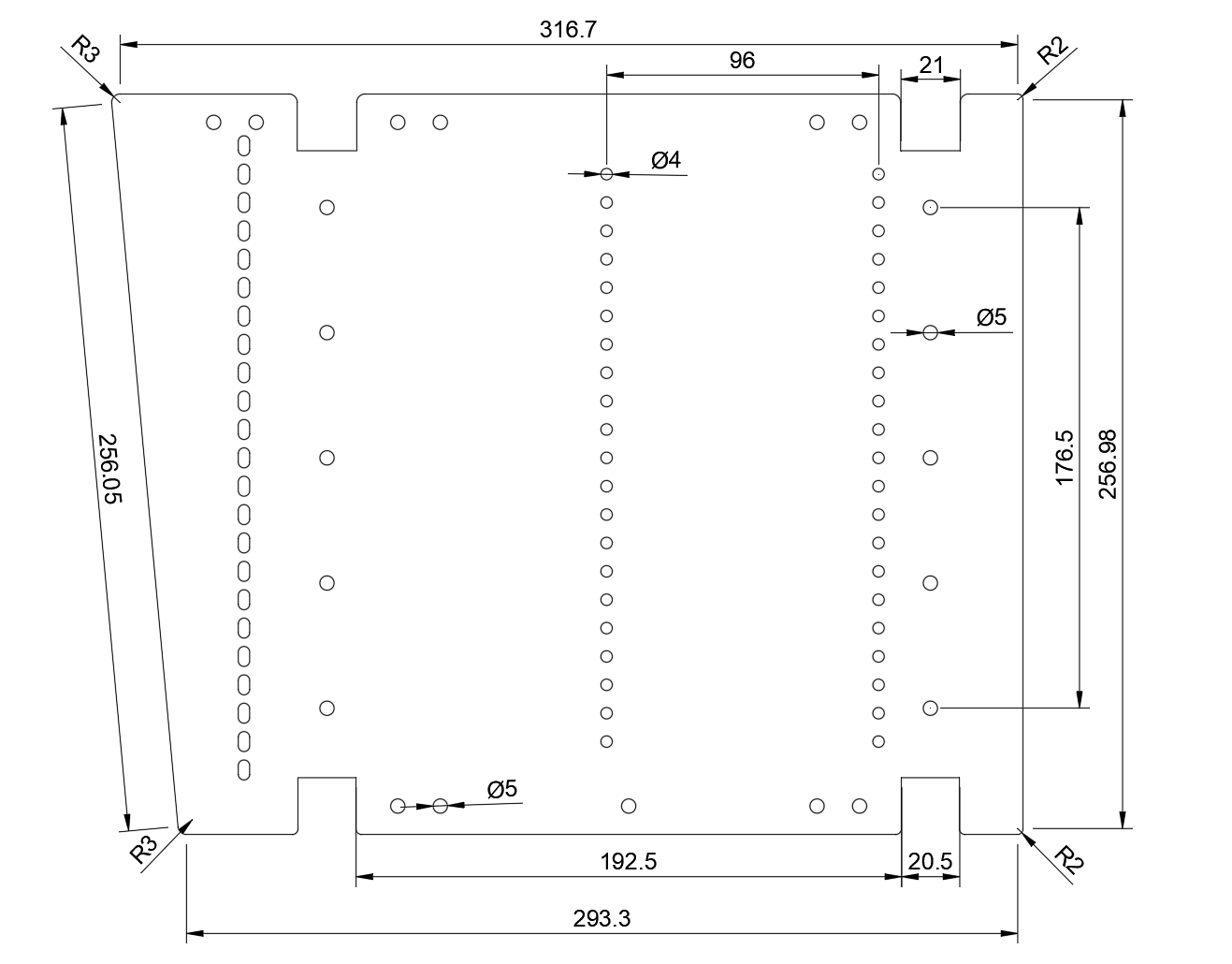

This part is the structure for mounting drawer slides on each side. The 10mm spacing is so that you can use the lowest profile drawer slides with out having the nuts and bolts interfere with each other. This happens when the left and right slides share the same hole. With the 10mm spacing, you can offset the drawer slides.
The extruded aluminum suggested for the frame can pass through on the top and bottom and you can use an L-Bracket to attach the middle divider to the 2020 extruded aluminum.
